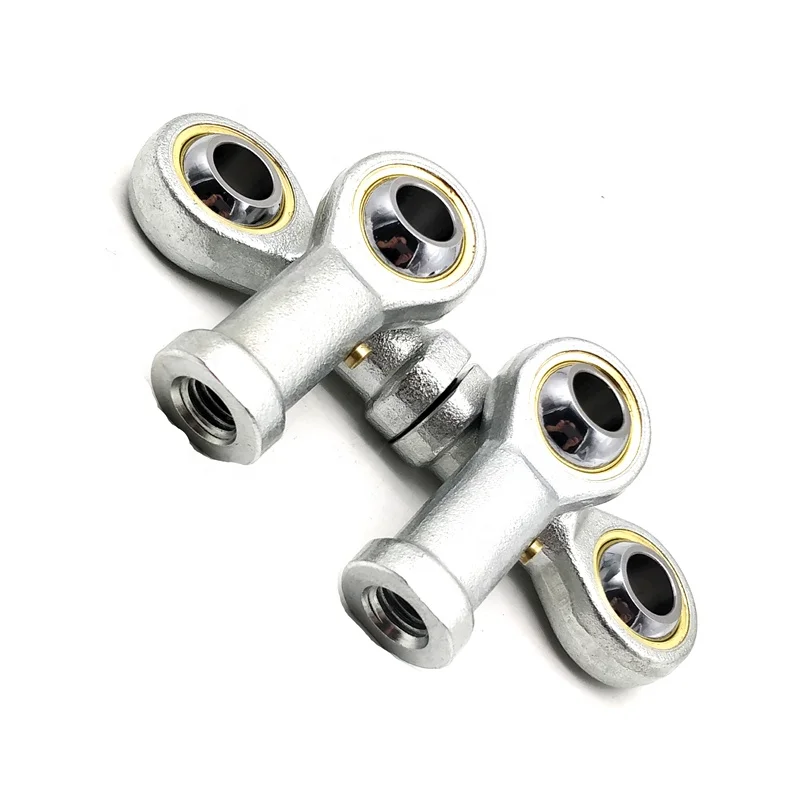

Stainless steel ball Rod End Bearings GE 10 PW
Description of ball joint bearing:
Joint Rod End Bearings are Rod End Bearings The basic type is composed of inner and outer rings with spherical sliding spherical contact surfaces. Spherical plain bearing is mainly composed of an inner ring with an outer sphere and an outer ring with an inner sphere, which can bear large load. According to its different types and structures, it can bear radial load, axial load or combined load of radial and axial. Since the composite material is embedded on the outer spherical surface of the inner
ring, the bearing can produce self lubrication in operation. Generally used for low speed swing movement, but also in a certain angle range for tilting movement, when the support shaft and shaft shell hole is not concentric, it can still work normally. Self lubricating joint auxiliary bearing is used in water conservancy, professional machinery and other industries. Because of the large spherical sliding contact area and large inclination angle of spherical plain bearings, and because most spherical plain
bearings adopt special processing methods, such as surface phosphating, zinc plating, chromium plating or lining of outer sliding surface, padding, spraying, etc. Therefore, it has greater load capacity and impact resistance, and has the characteristics of anti-corrosion, wear resistance, self-aligning, good lubrication or self lubrication without lubricating dirt pollution. It can work normally even if the installation is misplaced. Therefore, spherical plain bearings are widely used in low speed swing
motion, tilt motion and rotary motion.
1.Features of rod end bearing
• Sliding contact surface: steel/PTFE
• Lubricating: Maintenance-free
• Housing: 304 stainless steel
• Inner ring: 420 stainless steel, heat treated HRC54-60
• Outer Ring: 304 stainless steel
• Liner: PTFE
2. Rod end bearing application
Rod end bearing are widely used in hydraulic engineering, metal forming machine, construction machinery, automation equipment, automotive shock absorber, water machinery sluice gate, navigation lock, textile machinery.

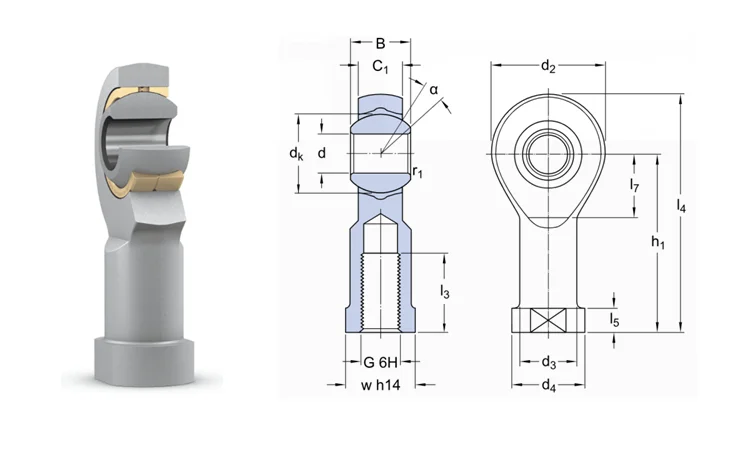

| Principal dimensions | Angle of tilt | Basic load ratings | Designation |
| | | dynamic | static | |
| d[in] | d2max.[in] | B[in] | C1max.[in] | h2[in] | α[°] | C[lbf] | C0[lbf] | |
| 0.787 | 2.028 | 0.63 | 0.787 | 1.496 | 9 | 6 744 | 14 163 | SCF 20 ES |
| 0.787 | 2.126 | 0.63 | 0.532 | 1.496 | 9 | 6 744 | 10 454 | SC 20 ES |
| 0.984 | 2.224 | 0.787 | 0.945 | 1.772 | 7 | 10 791 | 14 725 | SCF 25 ES |
| 0.984 | 2.559 | 0.787 | 0.709 | 1.772 | 7 | 10 791 | 16 523 | SC 25 ES |
| 1.181 | 2.618 | 0.866 | 1.142 | 2.008 | 6 | 13 938 | 24 729 | SCF 30 ES |
| 1.181 | 2.953 | 0.866 | 0.787 | 2.008 | 6 | 13 938 | 21 694 | SC 30 ES |
| 1.378 | 3.307 | 0.984 | 0.866 | 2.402 | 6 | 17 985 | 25 179 | SC 35 ES |
| 1.378 | 3.347 | 0.984 | 1.221 | 2.402 | 6 | 17 985 | 41 140 | SCF 35 ES |
| 1.575 | 3.701 | 1.102 | 0.945 | 2.717 | 7 | 22 481 | 30 124 | SC 40 ES |
| 1.575 | 4.016 | 1.102 | 1.437 | 2.717 | 7 | 22 481 | 64 071 | SCF 40 ES |
| 1.772 | 4.095 | 1.26 | 1.102 | 3.032 | 7 | 28 551 | 40 466 | SC 45 ES |
| 1.772 | 4.41 | 1.26 | 1.634 | 3.032 | 7 | 28 551 | 80 931 | SCF 45 ES |
| 1.969 | 4.488 | 1.378 | 1.221 | 3.465 | 6 | 35 070 | 49 458 | SC 50 ES |
| 1.969 | 4.941 | 1.378 | 1.634 | 3.465 | 6 | 35 070 | 93 296 | SCF 50 ES |
| 2.362 | 5.394 | 1.732 | 1.535 | 3.937 | 6 | 55 078 | 75 311 | SC 60 ES |
| 2.362 | 5.61 | 1.732 | 2.028 | 3.937 | 6 | 55 078 | 119 149 | SCF 60 ES |
| 2.756 | 6.378 | 1.929 | 1.693 | 4.528 | 6 | 70 815 | 102 288 | SC 70 ES |
| 2.756 | 6.555 | 1.929 | 2.244 | 4.528 | 6 | 70 815 | 152 870 | SCF 70 ES |
| 3.15 | 7.165 | 2.165 | 1.89 | 5.551 | 6 | 89 924 | 123 645 | SC 80 ES |
| 3.15 | 7.185 | 2.165 | 2.441 | 5.551 | 6 | 89 924 | 168 607 | SCF 80 ES |
| 3.543 | 8.996 | 2.362 | 2.638 | 5.906 | 5 | 110 156 | 290 004 | SCF 90 ES |
| 3.937 | 9.941 | 2.756 | 2.835 | 6.693 | 7 | 137 133 | 321 477 | SCF 100 ES |
| 4.331 | 11.732 | 2.756 | 3.248 | 7.284 | 6 | 147 250 | 494 580 | SCF 110 ES |
| 4.724 | 14.291 | 3.347 | 3.642 | 8.268 | 6 | 213 568 | 730 629 | SCF 120 ES |
