Nki 25/20 Needle Roller Bearing With Inner Ring

Product Categories
Shaanxi Fortune Industries Co.ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Nki 25/20 Needle Roller Bearing With Inner Ring

  • 1
  • 2

Brand Name : SFT

Model Number : NKI25/20

Place of Origin : CHINA

MOQ : 500

Price : 1-50USD/PC

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000PCS

Delivery Time : 45 days

Packaging Details : neutral

Bore Size : 40 - 40.0001 mm

Width : 20 mm

Inner dia. : 12 mm

Outer dia. : 24 mm

Cage : Steel Cage

Type : Needle

Contact Now

Nki 25/20 Needle Roller Bearing with Inner Ring

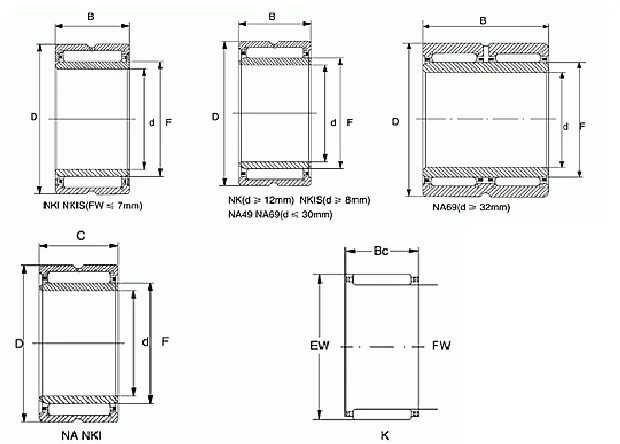

Different Sizes For Your Reference

Nki 25/20 Needle Roller Bearing With Inner Ring

Shaft
Diameter		 Bearing Designation Mass
Approx		 Boundary Dimension Basic Loading Limiting
Speed
Current
code		 Original
code		 d Fw D B Dynamic Static Oil
mm g mm N rpm
5 NA495 7 5 13 10 2670 2350 34000
NA495TN 7 5 13 10 2670 2350 34000
6 NA496 9 6 15 10 3150 3000 32000
7 NA497 12 7 17 10 3600 3650 30000
8 NKI8/16 8 14 25 16 12400 11300 21500
NA498 16 8 19 11 4300 3950 28000
9 NKI9/12 16.6 9 12 19 12 6200 7000 21700
NA499 17 9 20 11 4850 4900 26000
NKI9/16 21.9 9 19 16
10 NKI10/16 27.3 10 14 22 16 9800 10500 196500
NA4900 4524900 21 10 14 22 13 8000 9000 23700
NA6900 6534900 38.4 10 14 22 22 9000 11000 23700
12 NA4901 4524901 25.1 12 16 24 13 9000 10800 20000
NKI12/20 39 12 16 24 20 14000 18400 21000
NA6901 6534901 44.5 12 16 24 22 6000 21600 20000
NKIS12 58 12 16 30 16 16000 17000 20000
NA12*32*15V 12 32 15
15 NKI15/16 38 15 19 27 16 8800 12800 19100
NKI15/20 45.7 15 19 27 20 12300 19000 19100
NA4902 4924902 32 15 20 28 13 6400 9000 18000
NA6902 6534902 61.6 15 20 28 23 13100 20900 18000
NKIS15 90 15 22 35 20 23500 24000 17000
NA5902 52 15 20 28 18
NAI53212 15 32 12
74802 74802 15 36 25.4
16 NKIS16 16 28 16 13000 17400 22000
NA16*36*24 16 36 24
17 NKI17/16 41.4 17 21 29 16 13000 18200 20000
NA4903 4544903 32.8 17 22 30 13 7000 10000 17000
NA6903 6534903 68.2 17 22 30 23 14400 24900 17000
NA5903 56 17 22 30 18 15200 21700 18000
NA17 17 37 20
20 NKI20/16 48.5 20 24 32 16 10800 17000 16700
NA4904 4524904 70.2 20 25 37 17 21000 25000 17000
NKIS20 119 20 28 42 20 28000 35500 15000
NA6904 6254904 20 25 37 30 36000 51000 17000
NA5904 20 25 37 23

Nki 25/20 Needle Roller Bearing With Inner Ring
