4.055 4.054 4.053 Combined Needle Roller Bearings

Brand Name : SFT

Model Number : 4.055

Place of Origin : CHINA

MOQ : 500

Price : 1-50USD/PC

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000PCS

Delivery Time : 45 days

Packaging Details : neutral

Precision Rating : P0

Seals Type : Sealed

Number of Row : Single row

Cage : Steel Cage

Weight : 0.900 kg

Seal Type : non-sealed

Contact Now

Product Description

4.055 4.054 4.053 Combined Needle Roller Bearings

Description of Combined Roller Bearing for Forklift

The Combined Roller Bearing is composed of two main rollers, a side roller and a shaft head, which are installed in two different directions to reduce space and reduce manufacturing costs. The radial and axial direction bearing capacity is relatively large, and the accessories are highly replaceable. The adjustable combined roller bearing can adjust the position of the mandrel by adjusting the eccentric outer hexagon or the eccentric valve to achieve the purpose of adjusting the axial dimension of the side roller.

Composite roller bearings are mainly used in: forklifts, stackers, metallurgical industry, container front forks, cranes and other large lifting equipment and material lifting equipment.

Catalogue of Combined Roller Bearings for Forklift

4.055 4.054 4.053 Combined Needle Roller Bearings

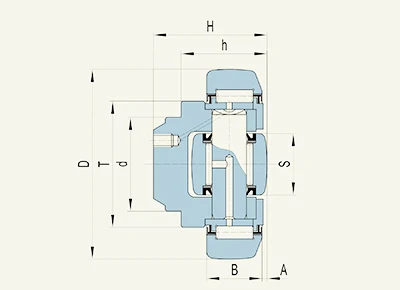

Model No.	D mm.	T mm.	d -0.05 mm.	H mm.	h mm.	B mm.	A mm.	S mm.	r mm.	C KN	COKN	COAKN	r/pm max.	Weight kg
4.053	52,5	40	30	33,0	27,0	17	5,0	15	2	24,0	32,0	7	800	0,46
4.054	62,5	42	30	37,5	30,5	20	2,5	20	3	31,0	35,5	11	900	0,53
4.055	70,1	48	35	44,0	36,0	23	2,5	22	4	45,5	51,0	14	900	0,80
4.056	77,7	54	40	48,0	36,5	23	3,0	26	4	48,0	56,8	18	800	1,00
4.057	77,7	53	40	40,0	29,0	23	3,0	26	4	48,0	56,8	18	800	0,87
4.058	88,4	59	45	57,0	44,0	30	3,5	26	3	68,0	72,0	23	750	1,62
4.059	101,2	67	50	46,0	33,0	28	3,0	30	3	73,0	82,0	27	700	1,74
4.06	107,7	71	55	54,0	39,0	31	3,0	34	5	81,0	95,0	36	650	2,27
4.061	107,7	71	60	69,0	55,0	31	4,0	34	5	81,0	95,0	36	650	2,82
4.062	123,0	80	60	72,3	56,0	37	5,0	40	5	110,0	132,0	50	550	3,89
4.063	149,0	103	60	78,5	58,5	43	5,5	50	3	151,0	192,0	71	450	6,52
