Product Description of cylindrical roller bearing
Cylindrical roller bearing

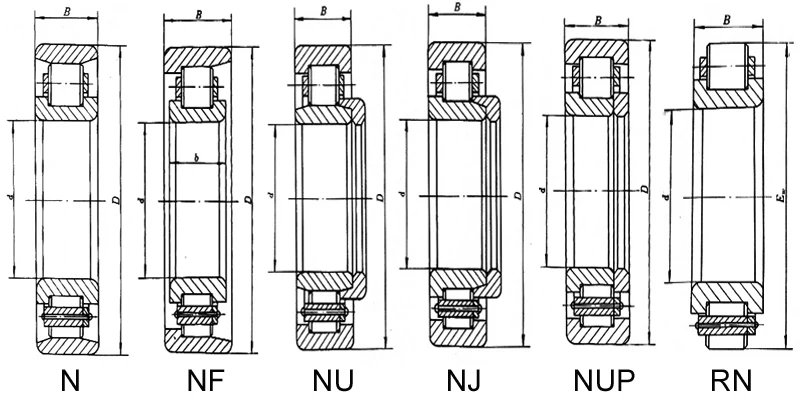

N Series- Bearings of N design are single row cylindrical roller bearing and have two fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the N Series bearings have virtually no thrust capacity.
NU Series- Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NU Series bearings have no virtually thrust capacity.
| Item | Value |
| Type | Cylindrical Roller Bearings |
| Structure | Roller |
| Model No. | NU202 NU203 NU204 NU205 NU206 NU207 NU208 NU209 NU210 |
| Size | ID: 15-50 mm OD: 35-90 mm H: 11-20 mm |
| | Building Material Shops, Retail, Energy & Mining, Repair Shops |
| Precision Rating | P0, P6, P5, P4 |
| Number of Row | Single row |
| Place of Origin | China |
| | |
| Material | Chrome Steel GCr15 |
| Hardness | 60-64 HRC |
| Clearance | C1 C2 C3 C4 |
| Vibration | V1 V2 V3 V4 |
| Lubrication | Oil Grease |
| Certificate | ISO9001 |
| Brand Name | OEM brand |
| Service | OEM Customized Services, Sample Available |
| Sample | 1-10 pcs |
Application
widely used in automobile, electrical equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries,machine spindle application and are used for cool and hot mills.
