Data Sheet
| Item | ASK |
| Material | GCr15 |
| Outer diameter | 80 mm |
| Inner diameter | 50 mm |
| Width | 16 mm |
| Bearing series | 6010 |
| Torque | 125 Nm |
| Drag Torque | 20 Ncm |
| Weight | 0.34 kg |
| Port | Shanghai;Ningbo |
| Delivery Time | 20-30 days |
Features
Type ASK is a roller type freewheel bearing supported by two rows of roller bearings. It is a self-contained dust protected unit, delivered grease lubricated. Nominal outside dimensions are the same as a 60.series bearing. Torque transmission must be ensured by a press fit on both the inner and outer race. Because of this press fit, the standard radial clearance is C4. The interference tolerances are on the freewheel dimensions, allowing a direct mounting in a standard series 60.
bearing location: Shaft tolerance should be h6 or j6 The outer race should be pressed into a rigid housing to K6 tolerance. Radial bearing load capacities are given in the table. Type ASK freewheels can not accept axial loading. In cases of such loads, thrust bearings must be provided.
The main function is to prevent the reverse, accurate positioning, transmission torque, cutting torque, also known as non-return device or one-way bearing.
ASK50 one-way overrunning clutch is mainly used in general machinery, packaging machinery, printing machinery, textile machinery, transmission machinery, food machinery, plastic machinery, petrochemical machinery, lifting transportation machinery, high voltage switch, fan, deceleration machine, compressor, machine tools and so on.
Different Sizes Of ASK Series For Your Reference

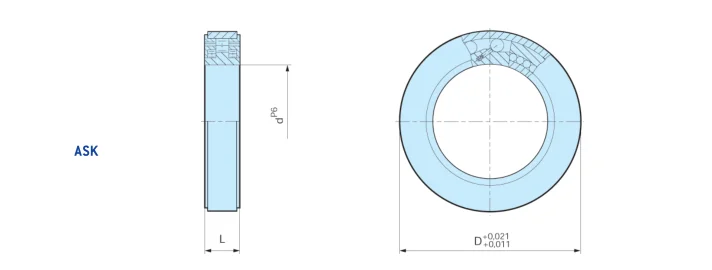

| Type | Size | Bearing Series | | | Outside Diameter | Height | Bearing loads | Weight | Drag torque |
| Dynamic | static |
| ASK | Dp6 (mm) | | TKN1) (Nm) | nmax (min-1) | D (mm) | L (mm) | C (kN) | C0 (kN) | (kg) | TR (Ncm) |
| 40 | 6008 | 72 | 3500 | 68 | 15 | 16 | 20.6 | 0.25 | 15 |
| 50 | 6010 | 125 | 2200 | 80 | 16 | 19.6 | 23.5 | 0.34 | 20 |
| 60 | 6012 | 250 | 1800 | 95 | 18 | 25.3 | 35.1 | 0.5 | 25 |
1) Tmax = 2 × TKN
Mounting
